Flexible Roller Conveyor

Product Specification

Flexible Roller Conveyors – Powered and Gravity

Khodiyar Industrial Pvt. Ltd. (KIC) manufactures flexible roller conveyor systems designed for versatile and efficient material handling in warehouses, factories, distribution centers, and dispatch facilities.

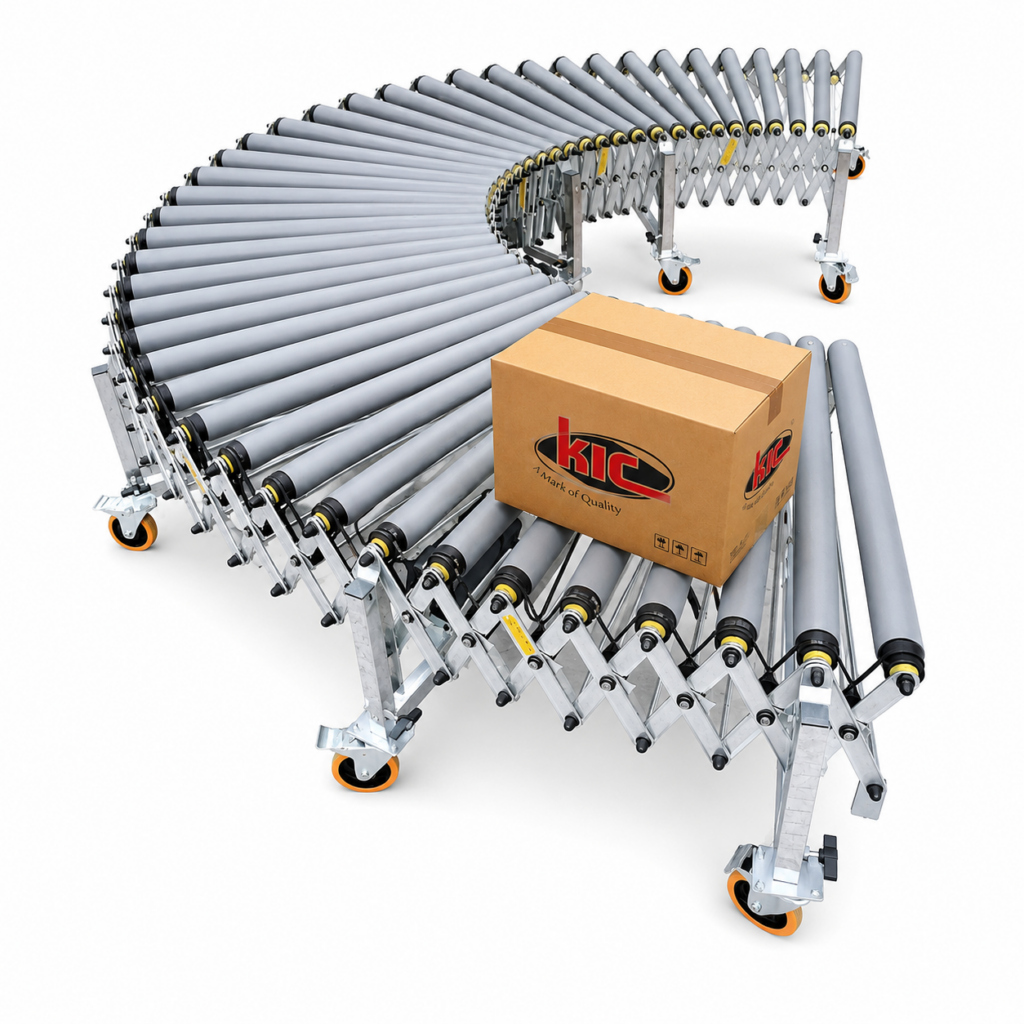

Flexible roller conveyors are designed to extend, retract, and navigate around obstacles, making them ideal for truck loading and unloading applications where space is limited. Their flexible configuration allows businesses to adapt conveyor layouts to changing operational requirements while saving valuable floor space when the conveyor is retracted.

As specified in the KIC product catalogue, flexible roller conveyors are available in powered and gravity configurations, with mild steel and stainless-steel structure options. Powered models support variable-speed product transfer and offer a stated carrying capacity of up to 95 kg per meter.

With heavy-duty 5-inch caster wheels, a self-tracking design, and handles at both ends of the units, KIC flexible roller conveyors provide a practical solution for industrial material handling applications that require mobility, adaptability, and efficient loading operations.

These conveyors can help streamline goods movement, reduce repetitive manual handling, and improve the flexibility of warehouse and dispatch workflows.

Features :

Flexible and Expandable Design: Extends and retracts according to operational requirements.
Space-Saving Construction: Requires less storage space when fully retracted.
Powered and Gravity Options: Supports different material handling needs.
MS and Stainless-Steel Structures: Available in both construction options, as specified in the catalogue.
High Carrying Capacity: Powered flexible conveyor system rated up to 95 kg per meter in the catalogue.
Variable-Speed Operation: Powered models support product transfer at variable speeds.
Heavy-Duty Mobility: Equipped with 5-inch caster wheels.
Self-Tracking Design: Supports flexible conveyor positioning and operation.
Low Maintenance: Designed for reduced maintenance requirements.
Optional Accessories: Photo sensor for package stopping, master/slave connection, zero-pressure accumulation, and side guides.

Technical Specifications :

Parameter	Specification
Conveyor Type	Flexible Roller Conveyor
Operating Type	Powered and Gravity
Structure Material	Mild Steel / Stainless Steel
Model Numbers	6001FL-03 to 6001FL-08
Available Width	600 mm / 800 mm
Closed Length	1500 mm to 6000 mm
Open Length	3000 mm to 12000 mm
Expandable Length Ratio	1:2
Conveyor Height	700–1000 mm
Speed	10–20 rpm
Power	270 W to 1080 W, depending on model
Carrying Capacity	Powered version: up to 95 kg/m
Caster Wheels	Heavy-Duty 5-inch Wheels
Additional Options	Photo Sensor, Master/Slave Connection, Zero-Pressure Accumulation, Side Guides
Application	Truck Loading/Unloading, Warehouse Dispatch, General Material Handling

Model-Wise Technical Specifications :

Model	Closed Length (mm)	Open Length (mm)	Width (mm)	Height (mm)	Speed (rpm)	Power (W)
6001FL-03	1500	3000	600–800	700–1000	10–20	270
6001FL-04	2000	4000	600–800	700–1000	10–20	360
6001FL-05	3000	6000	600–800	700–1000	10–20	540
6001FL-06	4000	8000	600–800	700–1000	10–20	720
6001FL-07	5000	10000	600–800	700–1000	10–20	900
6001FL-08	6000	12000	600–800	700–1000	10–20	1080
